Sachet Packing Machine

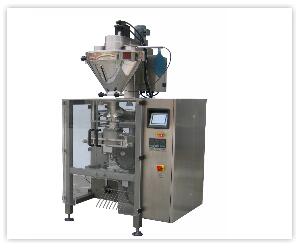

DCS-3BL Sachet Packing Machine
Product Details
1. Introduction
The machine can automatically
complete bag-forming, weighing, dosing, gas-purging, sealing, code printing,
cutting. It is applicable for packing powder product, for instance, milk powder,
monosodium glutamate, solid beverage, icing sugar, dextrose, feed, coffee, solid
medicament, powdery & grainy additive, dye, etc.
2. Features
Tool-free for size parts change.
Recipes can be saved for long term production.
Working & operation status
shown on touch screen, which results in easy operation.
Cutting position & web-tracking
can be adjusted through touch screen during the continuous running, so there is
always good appearance in long-seal & cross-seal.
Multiple bag types are available,
for instance, pillow bag, stand-up bag, carrying grip bag, etc.
The closed machine structure, leads
to low noise level and anti-dust, and is especially suitable for packing dusty
product.
Auger filler changeable for
different powder products.
Weighing feedback tracking device
optional.
3. Parameter
Specification | |
Metering Mode | Auger filling (Or weighing feedback
tracking) |
Bag Size | Width 70~280mm Length
100~350mm |
Packing Weight | 10-5000g |
Packing Accuracy | ≤1% |
Packing Speed | 25~60
Bags/min. |
Power Supply | 380/220V Three-phase 50-60
Hz |
Machine Power | 6Kw |
Air Pressure | 6-8Kg/cm2 |
Air Supply | 0.2m2/min |
Machine Weight | 800Kg |
Machine Bulk | 1500X1500X2600mm |
