Sachet Packing Machine
DXDO-K900F High-speed Sachet Packaging Machine
Product Details

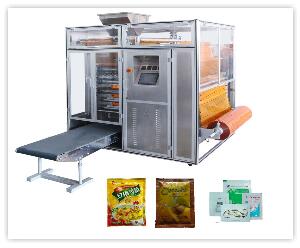

DXDO-K900F High-speed Sachet Packaging Machine
Granular, Four-side Sealing, Multi Lane
Application
DXDO-K900F fully automatic granule four-side sealing packing machine is
suitable for packing loose, non sticky granule material in the pharmaceutical,
food, chemical and other industry such as Pellet, monosodium glutamate, white
sugar, Soup season, oatmeal, seed, coffee, cold powder etc.
Features:
1. Advanced performance,
high strength, low noise, compact structure, stable operation and long service
life, and the addition of a film body, for films and maintenance more
convenient.
2. Synchronized using
five-axis servo-driven, man-machine interface touch adjustment, controlled by
PLC, it is precise in automatic in step positioning. Increase packaging speed
premise to ensure the quality of packaging.
3. Using high precision
rolling heat sealing roller as a whole as a seal mould sealing edges, exquisite
bag-shaped flat sealing strong beautiful, good quality, high efficiency.
4. Easy and fast to adjust,
it can step-less adjust Sachet length without changing the mould. Transverse and
longitudinal seal, filling material, batch number, dash, cutting and other
executive bodies can be adjusted through human-machine interface.
5. Packaging speed, filling
precise metering. Reciprocating type feeding mechanism, which shirk
responsibility structure, shake off assembling simple, easy cleaning and
maintenance. Equipped with triangle measuring cup measurement, can be adjusted
infinitely fine, high precision.
6. Photoelectric tracking
system is adopted to ensure correct printing and with automatic counting
function.
7. The machine with film
automatic correction and damping mechanism, to ensure the straightness and
tension stability of film, and make the Sachet more smooth and beautiful.
8. The model line
additional membrane automatic deviation correction and line-film damping
mechanism to ensure straightness of line film stability with the tension,
thereby greatly improving the level of smoothness and beauty bag-shape.
9. Adaptability of the
package film, the sealing temperature of machine is with automatic control, and
has high control accuracy (± 1C °). Suitable for most complex film packing film
in home and abroad, such as PET/AL/PE, PET/PE, NY/AL/PE, NY/PE and so on.
10. Extra functions set up, for
example, sachet cutting can choose dotted line knife or flat cutting knife,
abnormal shape knife etc, and can choose different kinds of alarm
requirement.
Main Technical
Parameters:
Model | DXDO-K900F |
Sachet length | 50-120mm( Sachet length can be changed) |
Sachet width | 50-105mm |
Packing speed | 80 cut/minute (depend on Sachet size & material) |
Filling capacity | 1-80ml |
Applicable film | PET/AL/PE PET/PE NY/AL/PE NY/PE |
Max film width | 900mm |
Max film diameter | Φ300mm |
Film coil diameter | Φ75mm |
Power Supply | 380V 50Hz (do as customer's request) |
Total power | 12 Kw |
Gross Weight | 1200kg |
Package size | 1500x1540x2200mm(L x W x H) |
