Sachet Packing Machine
Horizontal Type Sachet Packing Machine
Product Details
Introduction

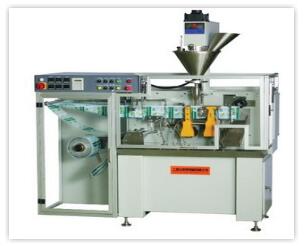

SDXD11 Horizontal type
automatic sachet packing machine integrates bag forming, metering and measuring,
filling and sealing into one automatic packaging machine, with a variety of
different filling nozzles , it is applicable for packing powders, liquids,
pastes, granules into heat-sealable laminated film materials, three side sealing
or four side sealing could be done. The machine adopts computer control, with
high production efficiency, adaptability, reliability, high stability, beautiful
appearance of the finished product, high sealing strength. It is ideal
packaging machinery and has been wide applied in food, drugs, cosmetics,
pesticides and feed industries.
Technical
Parameter:
Model
| SDXD11 |
Sealing
type | Three side
sealing / four side sealing |
Filling
accuracy | 100g
+/-2% |
Sachet
Size | 50×50mm-110 Width mm×130 Height
mm |
Sachet
volume | 2.5-60 ml
|
Capacity
| 40-70
bag/minute |
Power | -1.9
kVA |
Net Weight
| 450
kg |
External
Dimension | 1840X750 mm
(LXW) |

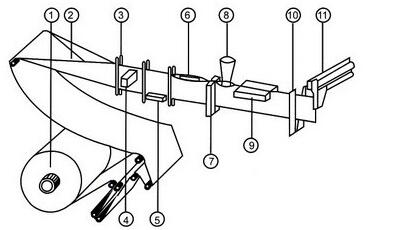

Structure:
Film roller |
2. Form film into “V”
type |
3. Forming
module |
4. phototube |
5. Four side sealing
(option) |
6. Bag opening
device |
7. vertical
sealing |
8. filling
nozzle |
9. top horizontal
sealing |
10. scissor |
11. bag pulling claw |
