Cartooning Machine

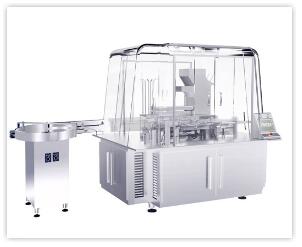

HDZ-150P Automatic Cartoning Machine
Product Details
HDZ-150P
Automatic Cartoning Machine
Main
Application:
This
cartoning machine is for automatic packing the product(vials and other products)
into carton, and the machine can complete vial feeding, specification feeding
and folding, carton feeding, cartoning action.
This
machine is widely applied in pharmaceutical, chemical, food industry.
Features
1.
GMP compliance
2.
Variable speed control, PLC automatic
control system.
3.
HMI, cartoning speed, quantity is
displayed on touch screen, and failure reason and operation and maintenance
method is also displayed.
4.
Different specification cartons can
be used in one machine, only small adjustment is required.
5.
Manual/ automatic mode can be
switched.
6.
specification folding
function
7.
Three lines of batch
numbers
8.
Automatic detection system, machine
can be set to stop for unqualified product, or unqualified product can be
removed from the line.
9.
No bottle/ product, no manual
feeding, no carton feeding.
10.
Synchronize motor for synchronizing
feeding.
Technical Specification
Capacity | 100-150 cartons/ minutes (stable speed
120-130) |
Carton specification (L*W*H) | (45-120) mm* (25-50) mm* (25-50)
mm |
Manual Specification | (90-200) mm* (110-160) mm |
Power Supply | 380V 50HZ |
Power | 1.1KW |
Compressed Air supply | 0.6Mpa |
Compressed air consumption | 30-90L/min |
Equipment dimension (L*W*H) | 1280mmX970mmX800mm |
Weight | 980Kg |
