Blister Packing Machine
Blister Packing
Product Details
Introduction

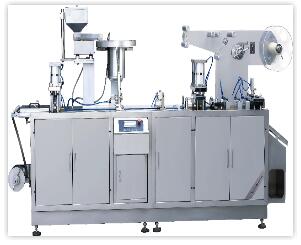

DPP-250S II plate style ALU-PVC/ALU-ALU blister packaging machine combines the structure specialties of the plastic machine and packaging machine. It is the innovative new machine which can reach the demand of GMP for the leechdom producing. This machine is fit for ALU-PVC and ALU-ALU compound sealed packaging with capsules, troches and other unfamiliar shape products from the trade of pharmacy, grocery, electronics and medical treatments.
Typical Feature
The motor adopts turn-arm planet frictional regulation, having longevity and little noise.
Control system is steady and safe, with good security.
The distance of forming, hot-sealing, perforation and cutting components can be adjusted arbitrarily according to variety of blister sizes.
Blistertowing manipulator using air chamber drive can be operated conveniently and the piston stroke is arbitrarily adjustable.
It has tank-type mould, easy to change.
Heating plate temperature control detection, overload protection for main motor, forming aluminum or PVC and PTP packaging material level detection.
Adopt PLC control, encoder data collection devices, touch-screen operation, words and numeric display, words indication of failure diagnosis, which is easy and reliable to operate and convenient to maintain.
Adopt detachable design, main transmission adopts synchronizing belt with flexible coupling, easy to carry and install.
Collocate fiber-optic detecting and rejecting system, realize lack of medicines of the blister checking.( special collocation)
Automatic eliminating mechanism, which realizes the separating between the finished products and the wasters automatically. (special collocation)
Technical Data
Num | Item | Parameters |
1 | Cutting Frequency | 15~25 times/min for ALU/ALU; 20-40 times/min for ALU/PVC; 1~4 blisters /time |
2 | Throughput | 4.8~7.2 ten thousand pieces/hour |
3 | Maximum Form Area | 110×240 mm |
4 | Maximum Form Depth | 10mm |
4 | Range of Travel | 60~120 mm |
5 | Standard Card Size | Standard: 57×80 mm Referenced size: 88×57, 95×65, 100×43 mm (it can designed according to user’s requirements) |
6 | Grains per Card | Capsule: 10pieces(size0, 1), 12Pieces(size2, 3) Tablet: 8~30pieces Abnormity: designed according to user’s requirements |
7 | Package Material | For ALU/PVC Nontoxic PVC hard pieces 0.15~0.40×250mm accord GB5663-8A PTP Aluminum Foil 0.02~0.15×250mm accord GBl2255 For ALU/ALU: PTP(0.02-0.05)X250mm, ALU(0.07-0.11)X250mm Paper 50~75 g×250 mm g/m2 （Scroll Aperture 70~76mm） |
8 | Heat Power | Upper warm up board: 1.5kw Nether warm up board: 1.5kw Heat-sealing: 1.5kw |
9 | Main electromotor Power | 380V 50Hz 6kw |
10 | Air Pump | >0.1 m3 (self-provided) Pressure: 0.4~0.6Mpa |
11 | Die Cooling | Tap water or Circulating water 60 L/H |
