Tube Filling Machine

图片1 .jpgProduct Details

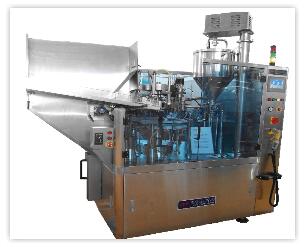

CFGNY-80A High Speed Tube Filling  Machine

 (Applicable for metal tube and  plastic and laminated tube)

Introduction

Basing on introducing  foreign advanced technology of the same kind of equipments, according to the  request and fact of home filling equipments, our company designs and develops  CFGNYZ-80A automatic tube filling and sealing machine. The machine has novel  design, compact structure, multi-function and easy operation in order to meet  the needs of domestic and international users in pharmaceutical, food and  chemical industries, so it is an ideal tube filling equipment.



The equipment has 40L  funnel, which can control the filling part, successfully pour mushy, cream and  mucous material into the tube, then complete filling, printing and sealing for  plastics and lamination packing through heat seal and automatically complete the  filling procedure. The machine could also be used for metal tubes after change  the changes parts.



Parameter

Model

CFGNYZ-80A

Speed

80 pcs/minute (Stable  speed)

Power

Supply: 380V / 3 Phase / AC /  50 Hz

Main Power

2.2  kw

Adopt to the tube diameter

Metal tube diameter  10-35mm

plastic and laminated tube:  10-60mm

Filling  capacity

Metal tube diameter  2-150ml

plastic and laminated tube:  2-250ml

Filling precision

≤+/-1%

power

4kw

Air pressure

0.4-0.6 MPa

Hopper Capacity

40L






Typical  Features

PLC  automatic control, HMI display and  control

Automatically tube  supply tubes to working position.

Elastic and inflation  type of tube cup to ensure same height of sealed tube

Automatically eye  mark checking, eye mark matching and positioning equipment.

Mechanical driven  type of filling to ensure stable filling

Hot air blower from  LEISTER, Switzerland

Inner tube hot air  sealing, external tube circulation cooling water cooling to ensure good effect  of sealing

Equipped with exhaust  system of extra heat and harmful air (patent: 201020687711.8)

Easy to connect with  emulsifier

Easy to change parts  for different size of tube

Automatic batch  printing system

Automatic tube  feeding, inner blowing, eye mark checking, automatic filling and  sealing

Variable speed  control

Filling amount auto  control

Tube absorption and  position fixing, FESTO vacuum generator

Failure alarm,  overload automatic machine stop

Inner tube  auto-cleaning and dust collecting device.

Air blowing to clean  the dust in the tube, and vacuum fan will collect it to callback equipment.

Tube upside down  auto-checking system

Omron upside down  testing photoelectric cell can accuracy test upside down tube and auto-control  stop of tube feeding, when eliminating the up side down tube(orientation error),  restart tube feeding.

No tube, no  filling.

Controlled by  precision photoelectric system, start filling action when there is tube in the  working position.

Product filling by  blowing off and cutting off to ensure better filling for high viscosity

products. Precision cooperating  filling system and reasonable blowing off and cutting off design ensure filling  precision. Its’ easy to assemble and dissemble, and it easy to clean completely.

GMP compliance

CE  compliance.
