CFY-60A Tube Filling Machine
Product Details
Introduction

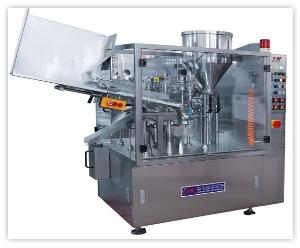

CFY-60A automatic tube filling and sealing machine is a most stable and mature production in our company, which has been manufactured since 20 years back. The machine has novel design, compact structure, multi-function and easy operation in order to meet the needs of domestic and international users in pharmaceutical, food and chemical industries, so it is an ideal tube filling equipment.
The equipment has 40L funnel, which can control the filling part, successfully pour mushy, cream and mucous material into the tube, then complete filling, sealing and printing for plastics and lamination packing through heat seal and automatically complete the production procedure.
Parameter
Model | CFY-60A |
Application | plastic and laminated tubes |
Applicable tube diameter | 10-40mm |
Maximum filling volume | 1-150ml |
Production speed | 20-60tube/min |
Filling Precision | > 99% |
Eye marking rate | 100% |
Power | Supply: 380V / 3 Phase / AC / 50 Hz |
Main Power | 1.1 kw |
Heating power | 3.0KW |
Hopper heating power | 2 KW |
Air pressure | 0.4-0.6 MPa |
Hopper volume | 40L |
Features
l Automatic tube feeding, inner blowing, eye mark checking, automatic filling and sealing
l No tube, no filling. System is controlled by precision photoelectric system, and only starts filling action when there is tube in the working position.
l Automatically eye mark checking, eye mark matching and positioning equipment, driven by stepping motor to rotate the tube.
l Product filling by blowing off and cutting off to ensure better filling for high viscosity products. Precision cooperating filling system and reasonable blowing off and cutting off design ensure filling precision. Its’ easy to assemble and dissemble, and it easy to clean completely.
l Inner tube hot air sealing, external tube circulation cooling water cooling to ensure good effect of sealing and avoid heat to the cream
l Stainless steel frame with high visible organic glass.
l Easy to connect with emulsifier.
l Easy to change parts for different sizes of tubes.
l Automatic batch printing system
l Variable speed control
l The batch product quantity can be controlled and counted
l Malfunction alarming, machine will stop automatically in case of machine door open or overload
l Emergency stop device
l Machine designed with mechanical cam drive, it can control the accuracy and transmission parts processing strictly, so the performance is quite stable.
l Machine is designed and assembled with tear free or light tearing parts, Mechanical transmission parts for all bearing linked action, equipment can run over 10 years without big repairing.
l Products can fully complying with GMP requirements
