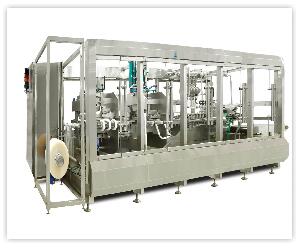

Non-PVC Film IV bag production line

Product Details

Introduction

This non-PVC soft bag compact line consists of three main  parts: forming, filling and sealing. It can finish procedures such as film  feeding, printing, port arrangement, port preheating, film separating, forming,  port welding, outline cutting, bag transferring, filling, heat sealing, filled  bag outfeed etc. It can also be connected with other auxiliary equipment as a  integrated compact line. It is suitable for 50ml-3000ml infusion soft bag  production in pharmaceutical factories. In order to meet different requirement  all over the world, we have got many innovation on this production line, we have  invented several series of soft bag compact line with our own intellectual  property, such as: SRD series, SRS series (double chamber soft bag), SRDF series  (multi chamber soft bag)

Features

1.     This line adopts linear design, it is convenient for  observation, operating, testing and maintaining. This line can complete the  process of forming, filling and sealing, cross contamination is avoided, and it  could meet GMP requirement.

2.     It has broad range of applicability, suitable for  50ml-3000ml infusion soft bag production. Few size parts need to be replaced  when changing specification.

3.     It adopts the advanced PID temperature control, ensures  the quality of bag sealing, and it is suitable for different kinds of packaging  material.

4.     It adopts design of no medium waste structure, which can  fully utilize the film, and reduce production costs.

5.     It adopts float joint to connect the printing air  cylinder, bag forming cylinder, and other parts, which makes the air cylinder  life longer, ensures long running stability.

6.     Forming mould adopts special high quality material, and  adopts special heat treatment and surface coating process, which can make mould  temperature more uniform, guarantee bag forming quality, and the using life of  mould longer than other similar product.

7.     It adopts mass flowmeter, high sensitivity aseptic valve  and high speed PLC control to realize filling. It has advanced filling method  and accurate measurement. It has function of no-bag-no-filling and  waste-bag-no-filling. CIP and SIP is easy to be realized on this  line.

8.     The port welding adopts the simple structure for  positioning, ensures the welding consistency.

9.     It adopts the rigid synchronous belt for transferring,  with long lifespan, and it w]]not extend. This ensures the longtime running  accuracy.

10.   Most of the parts on the machine adopts servo control  technology, it meet the requirement of high speed and high precision. The servo  motor drives the filling head, cap sealing head and heating board directly, no  need linear driver from the synchronous belt. It has simple structure and no  need much maintenance to be done.

11.   It adopts the communication method of onsite profibus,  optical cable transferring, with control method of pneumatic box, servo system,  PLC&HMI. All the running parameter can be saved in the recipe for later use.  High automatic system of this machine ensures the running of this line, with  high technology and reliable performance. With the auxiliary remote control  technology, it can realize the update and maintenance of the software  quickly

12.   This line has following characteristics: tight structure,  small area for purification, high production ability, good stability, very few  easily wearing parts, and its maintenance cost is the least of the similar  product.

Main  Technical parameter
