Liquid Vial Production

1KCZP Ultrasonic Bottle Washing Machine .jpg

KCZP Ultrasonic Bottle Washing Machine

图片1.jpgProduct Details

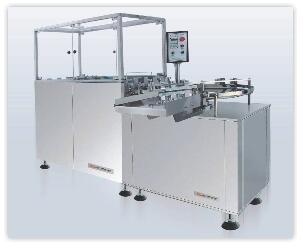

KCZP Ultrasonic Bottle Washing Machine

Introduction

KCZP ultrasonic bottle washing  machine is a type of cleaning equipment for new generation of vials, oral liquid  bottles, infusion bottles and plastic bottles. Introducing the state of art non  contact bottle cleaning method, with strong mechanical force by ultrasonic  cavitations, the dirt on the bottle will be removed, and various micro-organisms  , Escherichia  coli and similar bacteria  will be ultrasonic comminuted, then the cleaning, sanitization is achieved. It  is applicable for cleaning of all types of vials, oral liquid bottles and  similar bottles in pharmaceutical, chemical, food industries



The process includes automatic bottle  mechanical feeding, ultrasonic cleaning, track automatic turning of bottles, and  then four cycles of cleaning by both water and air. The combination of  ultrasonic cleaning and water/air rinsing and assisting cleaning will avoid  secondary contamination; the cleaning quality could meet the "GMP"  Pharmaceutical Manufacturing Practice requirements.



Features

l   Ultrasonic for rough cleaning, high pressure water/ air  for effective upside down fine cleaning, cleaned vial could meet GMP  requirement.

l   Integration of mechanical and electrical systems, the  equipment could complete automatic bottle arrangement, rough cleaning, fine  cleaning, and the cleaning water could be recycled and circulative used to save  production cost.

l   Variable speed control for efficient production,

l   Machine could be operated independently, or synchronized  with sterilizer, filling machine etc.

l   Simple structure, applicable for different type of vials  or round bottles with easy changing change parts.



Technical Parameters

l   Power supply: 380V 50Hz, 6.2KW

l   Ultrasonic power: 2KW

l   Purified water pressure:  0.15-0.35Mpa

l   Purified water consumption: 400-500L/h

l   Water for injection pressure: 0.15-0 .35  Mpa

l   Water for injection consumption: 300-400L/h

l   Clean compressed air pressure: 0.15-0.45MPa

l   Clean compressed consumption:  400-500L/h

l   Single machine noise:  ≤70dB

l   Weight: about  500Kg

l   Dimension  (L×W×H) : 2895×840×1750mm
