Powder Vial Production

4Auger Filling & Stoppering Machine .jpg

Auger Filling & Stoppering Machine

图片1.jpgProduct Details

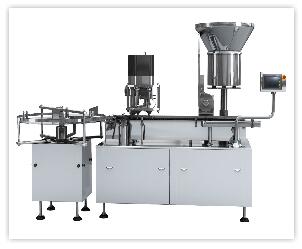

KFGB Auger Filling & Stoppering  Machine



The vials coming from sterilizing tunnel will  be sent to conveying belt through the turntable, sent to the transition  star-wheel through conveying belt and sent to filling star-wheel through  transition star-wheel for positioning filling, filling star-wheel locate vials  at filling nozzle, filling auger begins to work, fill powder directly into  vials. After filling, vials are sent to stoppering station. During stoppering  station, the vials are sent to the rotary stoppering plate, the stoppers are  sucked by the vacuum, and move with the stoppering plates, the vials moves up  and then they are plugged with stoppers one by one. After stoppering, the vials  will be sent out to the collecting tray through the star-wheel. Up to now, then  whole filling and stoppering process are completed.



Basic Parameter

Filling head 2

Stoppering head 12



Infeed station

Dia. of the turntable: 1200mm, Way of outfeed:  Single row outfeed, Material of machine frame: SS 304. There is transition board  at exit of tunnel to connect with turntable. Vials are sent to the infeed  star-wheel one by one.

There is a controllable buffer area at the  inputting part of turntable, and control system for detection of vial crowding  in turntable, to control vial quantity in this area. When it exceeds set point,  vial crowding control system will send instruction to stop the washing machine  and mesh belt of tunnel. It realizes linkage running of the whole line, and it  is good for coordination of the compact line.

There is falling vial auto rejection device  (vial diameter ≤φ22mm)and machine stop function for vial absence at exit part,  which can avoid vial crowding and vial breaking to improve vial conveying  quality

It adopts P+F photoelectric fiber switch to  realize no-vial-no-filling, which has high control precision and low error  action rate, and avoids medicine powder waste.



Filling station

At filling station, the vials are sent to  filling star-wheel through turntable and conveyor belt. The odd number vials are  filled at first filling station, the even number vials are filled at second  filling station, then all of the filled vials are sent to stopping station  through the transition star-wheel.

It adopts the positioning filling structure,  the powder is feed into the vial through the auger, with very short time  exposure of the powder, and also avoids the second contamination for the powder.  It can meet the FDA and EU CGMP standard.

It adopts big auger powder supply structure  from supply port to filling chamber, to control powder quantity in the chamber,  guarantees filling precision. It adopts stepper motor to drive the big auger.

It has mixing device in filling chamber,  guarantees uniform distribution of powder, avoids blocking phenomena. Mixing  device adopts stepper motor to drive.

It adopts servo motor to control filling auger  for filling quantity. Because servo motor adopts closed ring movement, which  avoids loosing step phenomena in high speed running, improves filling precision.  And it only need to adjust filling quantity in touch screen, no need for manual  adjustment. Adjusted parameters can be saved for future use(can store several  groups of parameters)..

It adopts the butterfly valve to connect the  powder turnover bucket and powder distribution bucket, which prevent the powder  exposure, guarantees the cleanness requirement.

The filling system is fit for 1g filling  volume, for exceeding filling range buyer need to add filling auger to achieve.



Stoppering station

During stoppering station, the vials are sent  to the rotary stoppering plate, the stoppers are sucked by the vacuum, and move  with the stoppering plates, the vials moves up and then they are plugged with  stoppers one by one. The vacuum source is supplied by the buyer.

It adopts integral stoppering, which is  convenient for size changing, cleaning and sterilizing. It adopts advanced  rotary stopper taking and linear stoppering method, in favor of smooth, stable  stoppering and without fallen vial.

It increases no-vial-no-stoppering control  device between stopper hopper and stopper suction plate. When there is no vial,  the PLC will send order, the electromagnet in no-vial-no-stoppering control  device will work, it will block stopper channel, to realize  no-vial-no-stoppering function.

Adjusting oscillation voltage can control  stopper orienting speed. Stopper output position also can be adjusted up and  down. It is easy to operate, and works stably.



Outfeed station

It adopts star-wheel outfeeding, single outfeed  path.



Separating device

Vial infeed part, filling part, stopper feeding  part, stoppering part are under Class 100 LAF, which is equipped with stainless  steel frame and polymethyl methacrylate safety door with interlock. LAF system  is supplied by buyer.



Control system

HMI: Mitsubishi, 5.7”, colour screen

PLC: Mitsubishi

Electric cabinet: together with main machine  and be airtight.

Electric control panel: together with main  machine, and connected with the electric cabinet by wire. Equipped with touch  screen, emergency button, it can display the alarm, and reset by manual  operation.

Interlocking device: interlocking with other  machines to show the causes of fault, position of fault and simple solution.

It is protected through 3 levels password:  operator, engineer and administrator.



Material of main spare parts

Metal material contacting with medical powder  such as auger adopt 316L.

Machine frame adopt metal paint baking  treatment

All size  parts without metal material such as star-wheels adopt POM (polyformaldehyde)  material.

Frame of filter, LAF fan, HEPA filter (H14),  differential pressure gauge, DEHS/PAO port.

Safety door of polymethyl methacrylate,  self-control interlocks, stop when opened.
