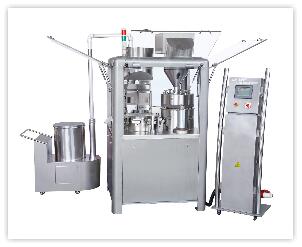

Automatic Capsule Filling Machine

图片1 .jpgProduct Details



Introduction
The machine is designed and further improved on the base of original full automatic capsule filling machine from both home and aboard. With high technology and exclusive performance, it has reached international leading level. It is an ideal equipment for capsule and medicine in pharmaceutical industry which is in full compliance with GMP requirements. It adopted PLC programmable controller, stepless frequency inverter, man-machine interface to operate and touch screen display (Type A&B is a Touch Panel operation). With fault or lack of material, the machine will automatically alarm and shut down, and eliminate automatic alarm after troubleshooting. All the key pieces of the drive shaft and the camshaft for the machine are adopting the imported materials.

Features
1.      Good-looking appearance, exquisite workmanship, eases of operation, simplicity of use.
2.      Filling seat and measuring plate are designed as one unit to make measuring plate and filling rod without deviation, avoid friction between filling rod and measuring plate, improve its precision, furthermore, it enhances the machine’s life greatly.
3.      Ineligible capsule can be eliminated automatically, the medicine in the capsule can be recycled and be reused, thus it can improve greatly the economic efficiency.
4.      Simplicity and convenience of dismantling, installation and clean, various models of mould can be replaced (the mould of 200 model and 400 model as well as 600 model can be replaced mutually on the same machine) to meet different capacity requirements.
5.
Main Technical Parameter



 Model
NJP-400
NJP-800
NJP-1200
NJP-2000
 Filling dosage
 Powder, Pellets, Tablet
 Capsule size
Capsule 00# to 5#/
Safety capsule A-E
Max. output(pcs/h)
 24000
 48000
72000
120000
Power
 220V 50Hz 2KW
 220V 50Hz 2KW
380V 50Hz 3KW
380V 50Hz 3.7KW
Noise index
 <80dBA
Overall dimension (mm)
 930X780X1900
 970X820X1900
970X820X1900
1100X1000X2000
 Weight (kg)
 800
 900
900
1300
