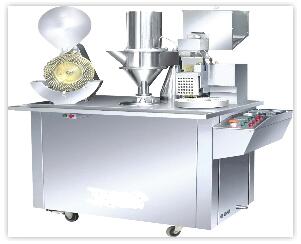

Semi Automatic Capsule Filling Machine

图片1 .jpgProduct Details



Introduction

The machine is integrated with mechanical, electrical,  pneumatic components, with

PLC controlled, frequency converter driven, and  human-machine interface operation.

It can complete the action of positioning, separation,  filling, locking etc for capsule, reduces labor strength, and improves  production efficiency, complies with GMP requirement. The parts contacted with  the product are made of stainless steel. It is ideal and economic equipment  of filling powder into different  sizes of hard capsule shells in pharmaceutical  industry.



Technical Parameters





Capacity(pcs/h)

10000-15000

Total  Power

380V/50Hz  3.1kw

Applicable capsule  size

0# 1# 2# 3# standard Capsule

Air Pressure (Mpa)

0.4-0.6

air  supply

≥0.1m3/min

Vacuum (m3/h)

40

Overall dimensions (mm)

1200×720×1600 (L×W×H)

Weight (kg)

330
